CR2032 Coin Cell Case (Negative Case, Cone Spring, Spacer, Positive Case)

Name: CR2032 Coin Cell Case (Negative Case, Cone Spring, Spacer, Positive Case)
SKU: PN08BE0101
Availability: InStock

€259,81 – €753,28

CR2032 Coin Cell Case

To pay, you need to add the €250,00 amount to your cart.

Sets	100 sets 250 sets 500 sets Clear

Add to wishlist

SKU: PN08BE0101 Category: Battery Materials

Description

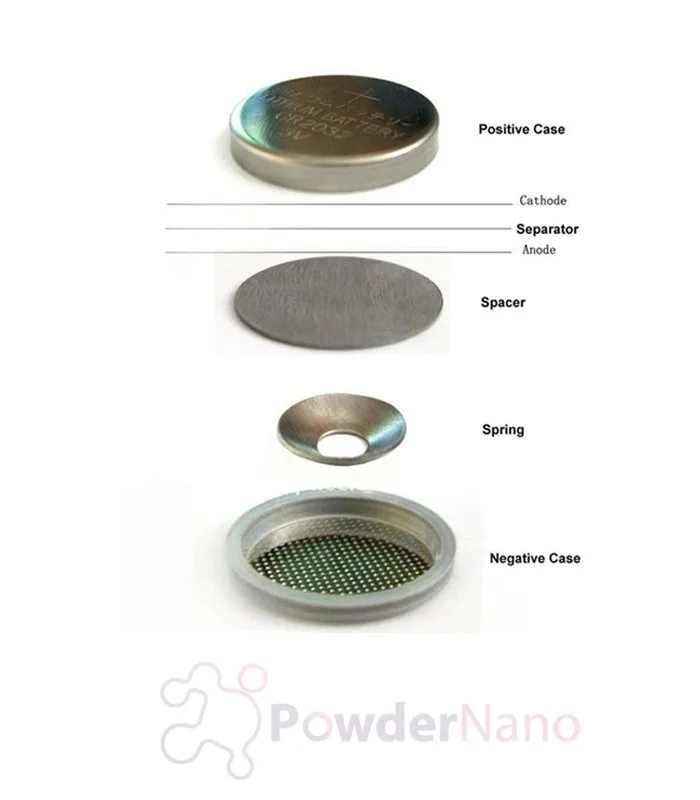

CR2032 Coin Cell Case (include Negative Case, Cone Spring, Spacer, Positive Case)

Cr2032 Coin Cell Cases are made from stainless steel and includes a top cover, bottom container, a steel spacer and a steel spring. Cr2032 Coin Cell Cases are excellent for developing new rechargeable battery and battery electrodes. We supply??Cr2032 Coin Cell Cases with low prices and high quality to fulfill our customers’ needs.

Technical Properties:

Dimensions (Dia x Height)	20 mm x 3.2 mm
Weight	3.40 grams
304SS Spacer	15.8*0.5 mm
Cone Spring	15.4*1.1 mm
Sealing Gasket	Polypropylene (PP)?
Thickness of?Negative Case and Positive Case	0.25 mm +/- 0.02 mm
Material	304SS
